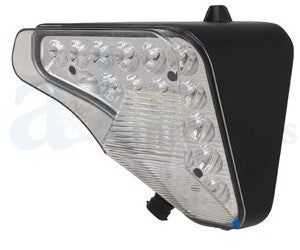

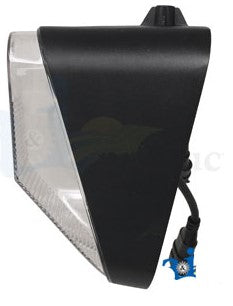

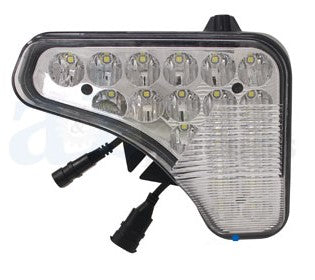

LH headlight A-WL8041L

Replaces LH headlight

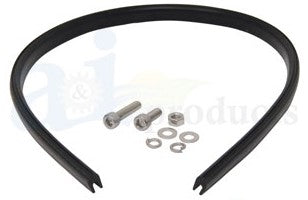

Also available as light kit A-WL4652KT

18 - 5 Watt OSRAM LED Diodes
High & Low Beam
Raw Lumens Low Beam 3825 / Effective Lumens Low Beam 3060
Raw Lumens High Beam 7650 / Effective Lumens High Beam 7000
Draws 7.5 Amps @ 12 Volts & 3.75 Amps @ 24 Volts (Watts / Volts = Amps)
Voltage: 10-30 Volt DC
Body Size: 7.40" (18.80cm) Width X 6.85" (17.40cm) Height X 5.90" (15cm) Depth
Body Material: Die Cast Aluminum
Operating Temperature: -40 ~ 140 Fahrenheit /-40 ~ 60 Celsius
Lens Material: Polycarbonate
Built In Premium EMC Noise Suppression Filter
Replaces 7251341, 7138041

Fits: Bobcat A770, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850, T450, T470, T550, T590, T595, T630, T650, T750, T770, T870
