Sealed Beam, LED; Flood, W/ Mount Clip
Sealed Beam, LED; Flood, W/ Mount Clip
Couldn't load pickup availability

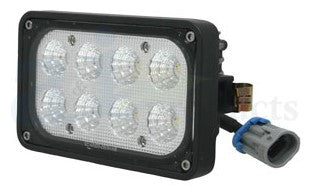

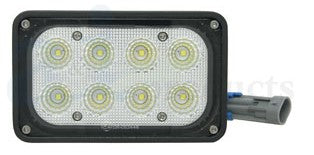

Direct fit LED light for the two front lights above the cab and the rear work & reverse light
| Body | Rectangle |
| Body Material | Die Cast Aluminum |
| Color Temperature | 6000K |
| Dimensions | Width 5.0" (12.8 CM) X Height 3.1" (7.9 CM) X Depth 2.5" (6.4 CM) |
| Diode | (8) 5 Watt Cree Diodes |
| Draw | 3.33 Amps @ 12 Volts & 1.66 Amps @ 24 Volts (Watts / Volts = Amps) |
| Lens | Polycarbonate |
| Light Pattern | Flood |
| Lumens Effective | 2,150 |
| Lumens Raw | 3,000 |
| Replaces | Case part #: 222004A2 John Deere part #s: KV26918, KV13708, KV13709, AT345169 New Holland part #s: 9844417, 9844418, 86501306, 86533428 |
| Volt | 10-30 Volt DC |
Fits: Case 40XT, 410, 420, 420CT, 430, 435, 440, 440CT, 445, 445CT, 450, 450CT, 465, 60XT, 70XT, 75XT, 80XT, 85XT, 90XT, 95XT
John Deere CT315, CT322, CT332, 240, 250, 260, 270, 313, 315, 317, 320, 325, 328, 332, 4475, 5575, 6675, 7775
New Holland C175, C185, C190, LS120, LS125, LS140, LS150, LS160, LS170, LS180, LS180.B, LS185.B, LS190, LS190.B, LT185.B, LT190.B, LX465, LX485, LX565, LX665, LX865, LX885, LX985, L12, L125, L140, L150, L160, L170, L175, L180, L185, L190, L250, L255, L465, L565, L665, L865

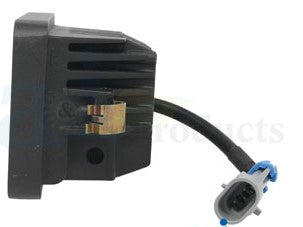

This light is held in the housing with a clip. If you need the light that is held in with 4 screws in a bezel check out A-WL353
